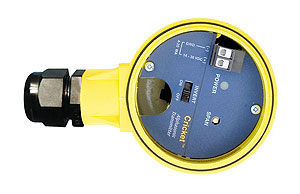

| The general purpose two-wire alphasonic transmitter provides light duty level measurement up to 10' or 3m, and is well suited for clean water or non-coating and scaling diluted corrosive liquids. The transmitter is typically selected for atmospheric day tank and process vessel applications. Media examples include potable water and malic acid. |
|
 |
|
Low-cost measurement solution for light duty level applications |
|
PVC, PP or PVDF wave guides may be easily sized in the field |
|
Wave guide dampens turbulence for accurate measurement in agitation |
|
Simple potentiometer calibration with power LED and span invert switch |
|
| Tech Tip |
| For easy installation in open tanks, order the adjustable LM50 side mount bracket. The PP bracket bolts directly to the side wall.
|
 |
|
|
|
Specifications |
|
Range: |
1' to 10' (30cm to 3m) |
|
Accuracy: |
± 1% of span in air |
|
Supply voltage: |
14-36 VDC |
|
Signal output: |
4-20 mA, two-wire |
|
Calibration: |
Potentiometer |
|
Process temp: |
F: -4° to 140°
C: -20° to 60° |
|
Pressure: |
30 psi (2 bar) |
|
Enclosure rating: |
NEMA 4X (IP65) |
|
Probe material |
PVDF |
|
Conduit: |
1/2" NPT |
|
Process mount: |
1" NPT (1" G) |
|
Classification: |
General purpose |
|
|
 |
