Metal-bodied low flow meter in sizes 1/2" and 3/4"
» Versatile square-wave signal connects to PLC's, counters, and SeaMetrics controls

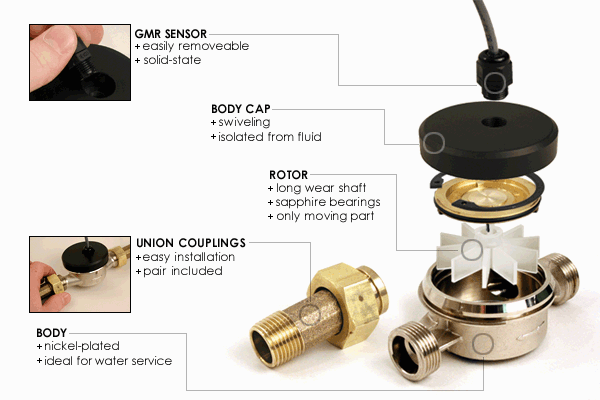

» Rugged nickel-plated brass body
» Union end connections for easy plumbing
» One moving part
» Replaceable non-wetted solid-state pickup
Features
Specifications
Sensor
| GMR |
5 to 30 Vdc current sinking pulse |
Materials
| Body |
Nickel-plated brass |
| Rotor Chamber |
Thermoplastic |
| Rotor |
Thermoplastic |
| Shaft |
Tungsten carbide |
| Bearings |
Sapphire and graphite |
| Maximum Temperature |
185° F (85°C) |
| Maximum Pressure |
175 psi (12 bar) |
Flow Range
| 1/2" |
0.2 to 10 Gallons per minute |
| 3/4" |
0.2 to 18 Gallons per minute |
| Accuracy |
± 1% of full scale |
Standard K Factor
| 1/2" |
550 Pulses per gallon |
| 3/4" |
330 Pulses per gallon |
| Cable |
#22 AWG 3-cond, 12' (4m)
Maximum run 2,000' (610m) |
|
