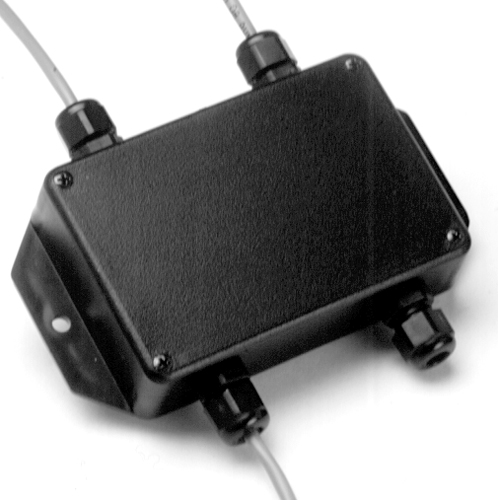

Seametrics PS40Seametrics
PS40

Four-way pulse signal splitter

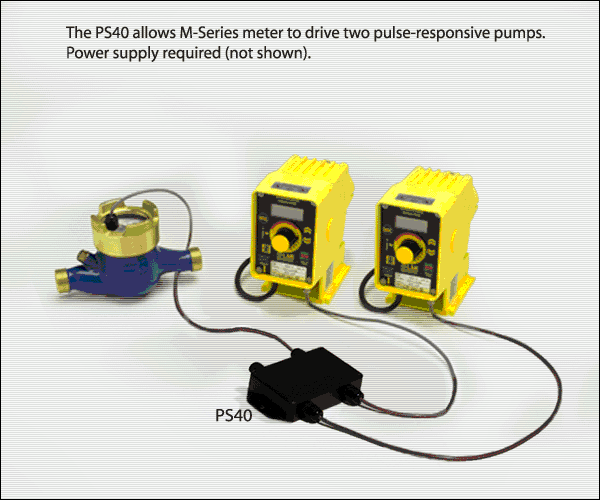

» Allows single meter to operate multiple devices
» Ideal for pacing multiple metering pumps
» Solid state outputs plus one relay (dry contact)

Features

Seametrics PS40 Features

Specifications

Power 10 to 36 Vdc
Operational Frequency 50Hz max
Relay - Contacts 250 mA max, 36 Vdc max, 3W max
Opto Isolation 10 mA max @ 30 Vdc
Outputs Three Open Collector OptoIsolated,
One Form C Relay

Seametrics PS40 Instruction Manual
