Seametrics
IP 115/215
Seametrics IP 115/215 Series Instruction Manual .PDF

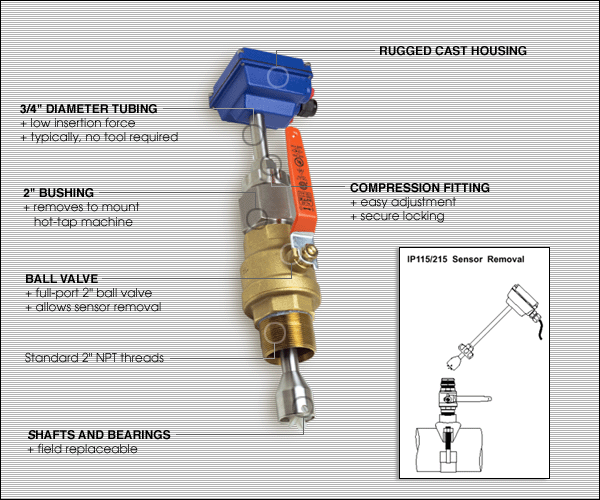

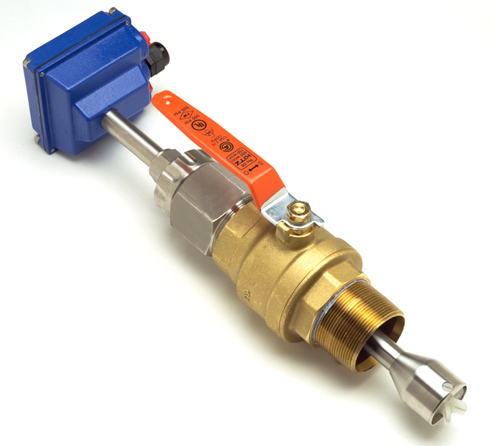

Adjustable hot-tap paddlewheel sensor for pipe sizes 2"- 48"
» Isolation valve allows insertion and removal with the pipe under pressure
» Two sizes fit entire pipe range: IP115 to 10", IP215 to 48"
» High-quality ruby bearings for excellent low-flow performance and long life
» One easily-replaced moving part
» Square-wave frequency output can connect directly to PLC's or counter controls
» Uses standard NPT threaded pipe fittings or saddles
» Controls can be remote or meter mounted
Features
Specifications
Sensor
| Hall Effect Sensor | 12 VDC current sinking pulse |
Materials
| Sensor Body | Brass, 316 SS, or PVC |
| Rotor | PVDF |
| Shaft | Nickel-bound tungsten carbide (zirconia ceramic opt.) |
| Bearings | Ruby jewels |
Isolation Valve
| PVC | 2" Gate Valve |
| Brass & SS | Bronze STD, 316SS opt. |
Pipe Size
| IP115 | 2" to 10" (50-250mm) |
| IP215 | 10" to 48" (250-1200mm) |
| Fitting Size | 2" NPT |
Maximum Pressure
| PVC | 150 PSI @ 75° F (10 bar) |
| Brass & SS | 200 PSI (14 bar) |
Maximum Temperature
| PVC | 130° F (55° C) @ 0 PSI |
| Brass, 316 SS | 200° F (93° C) |
| Range | 0.3 to 30 FPS (0.1 to 9 M/s) |
| Accuracy | ± 1-1.2% FS |
| Insertion Force | 0.44 X pressure in pipe |
| Nominal K-factor | 11 Hz/FPS (3.6 Hz/M/s) |
| Power | 5-24 VDC 1.5mA |
| Cable | #22 AWG 3-con, 18' |
| Max Cable Run | 2,000' (650m) |
Flow Range (GPM)
|
|
|
|
|
|
|
|
|
|
|
| Min |
|
|
|
|
|
|
|
|
|
| Max |
|
|
|
|
|
|
|
|
|
