Seametrics

IP 101/201

Seametrics IP 101/201 Series Instruction Manual .PDF

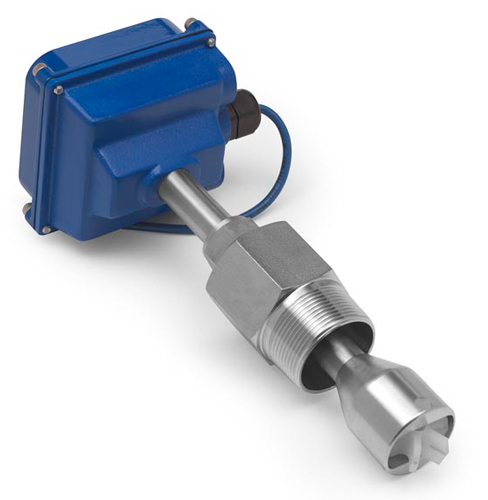

Adjustable paddlewheel flow sensor for pipe sizes 2" to 48"
» Two sizes fit entire pipe range: IP101 to 10", IP201 to 48"
» High-quality ruby bearings for excellent low-flow performance and long life
» Pickup exerts no magnetic drag on the rotor
» One easily-replaced moving part
» Square-wave frequency output can connect directly to PLC's or counter controls
» Uses standard NPT threaded pipe fittings or saddles
» Compatible with all SeaMetrics controls

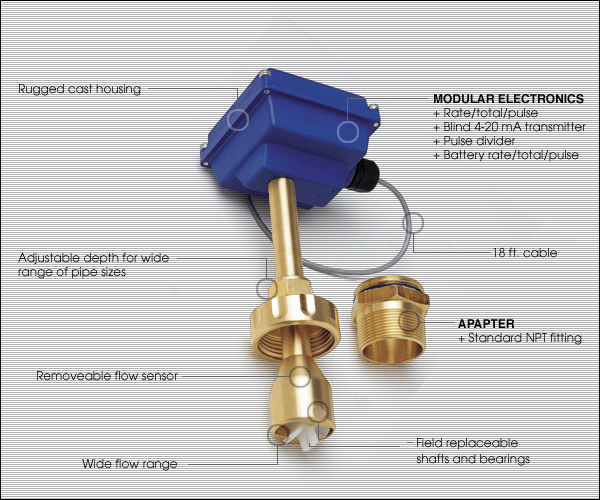

Features

Seametrics IP 101/201

Specifications

Sensor

Hall Effect Sensor

12 VDC current sinking pulse

Materials

Sensor Body	Brass, 316 SS, or PVC
Rotor	PVDF
Shaft	Nickel-bound tungsten carbide (zirconia ceramic opt.)
Bearings	Ruby jewel

Pipe Size

IP101	3" to 10" (50-250mm)
IP201	10" to 48" (250-1200mm)

Fitting Size

PVC	2" NPT
Brass, 316 SS	1-1/2" NPT

Maximum Pressure

PVC	150 PSI @75°F (10 bar)
Brass & SS	200 PSI (14 bar)

Maximum Temperature

PVC	130° F (55° C) @ 0 PSI
Brass, 316 SS	200° F (93° C)

Range

0.3 to 30 FPS (0.1 to 9 M/s)

Accuracy

± 1-1.2% FS

Insertion Force

0.44 X pressure in pipe

Nominal K-factor

11 Hz/FPS (3.6 Hz/M/s)

Power

5-24 VDC 1.5mA

Cable

#22 AWG 3-con, 18' (6 m)

Max Cable Run

2,000' (650m)

Flow Range (GPM)

	3"	4"	6"	8"	10"	12"	16"	24"
Min	7	12	30	50	75	100	175	400
Max	700	1100	2500	4500	7000	10000	16000	35000
