IDEC

Terminal Blocks


IDEC terminal blocks are molded from UL94-V0 material, with excellent flame and shock resistance, and mount on a standard 35mm DIN rail or surface mount (2 types). They come in sectional or one-piece construction with current ratings from 10A ot 350A. Models include fuse blocks with optional blown fuse indication. Variety of accessories are available, including marking strips and dust covers.
_____________________________________________________________________________________________

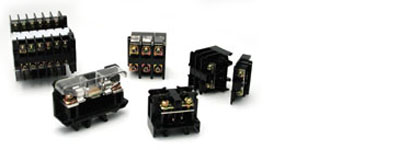

BN/BNH Series


Overview

The BN series of terminal blocks are a traditional screw terminal block. With full size screws (nut and bolt termination on larger models) and current ratings up to 150A, there is a BN series terminal block for almost any application.

A UL94-V0 flammability rating ensures safety. Dust covers and fuse holders with optional blown fuse indication round out the offering. All models mount onto standard 35mm DIN rail.

The BNH series of terminal blocks feature a unique "touch-down" terminal that makes wiring ring-lugs easier than ever before. These terminals use full size screws in various sizes, held captive by unique cammed carrier armature. Modular construction allows for stacking of multiple size blocks, with only one endplate required per run. Optional jumper strips and dust covers simplify wiring and protect terminals.

Key Features

  • Modular construction
  • Optional dust covers and marking strips
  • UL94-V0 flammability rating
  • Mount on standard 35mm DIN rail
  • BN: Current capacities up to 150A
  • BNH: Current capacities up to 50A
  • BN: Fuse blocks for 1/4 x 1-1/4 fuses (optional blown fuse indication)
  • BNH: Unique Touch-Down terminals make wiring ring terminals especially convenient

Documents and Downloads
BN/BNH Series Catalog
_____________________________________________________________________________________________

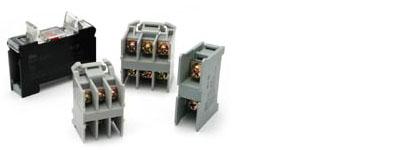

BA Series


Overview

The BA series of terminal blocks features a one-piece construction that makes installation very simple. Available in current capacities from 10A to 40A, all models are made from UL94-V0 material for excellent flame and heat resistance. All models mount onto standard 35mm DIN rail. Fuse holders for 1/4 X 1-1/4 size fuses include optional blown fuse indication.

Key Features

  • One piece construction, no end plates required
  • Mount onto standard 35mm DIN rail
  • Current capacities up to 40A on BA power blocks, 350A on BN power blocks
  • UL94-V0 flammability rating
  • BA power blocks available in 1 pole (15A, 20A, and 30A) or 3 pole (40A)
  • BN power blocks available in 2, 3, or 4 pole (up to 350A)
  • Fuse holders with optional blown fuse indication
  • Optional dust covers and marking strips

Documents and Downloads
BA Series Catalog
_____________________________________________________________________________________________

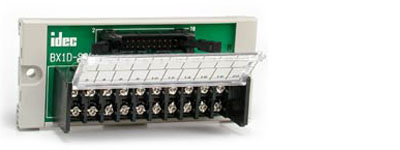

BX Series


Overview

The BX series of terminal blocks provides a wiring junction for MIL-style ribbon cables. Available in several industry standard and PLC MIL connector models, with screw terminals or our unique touch-down terminals, the BX series also features a highly visible hinged marking strip to clearly label connections and terminations. Like all other IDEC terminal blocks, they are UL and CSA approved, with excellent flame and shock resistance, and are DIN-rail mountable.

Key Features

  • Unique touch-down terminals
  • Standard and PLC MIL connector models available
  • All units are molded from UL94-D0 material with excellent flame- and shock-resistance
  • Mount on DIN rail or flat surface
  • Current capacity: 1A
  • Available with 10, 16, 20, 34, 40, and 50 pins
  • UL Recognized and CSA approvals
  • Hinged covers with built-in marking strips

Documents and Downloads
BX Series Catalog
