Hubbell Industrial

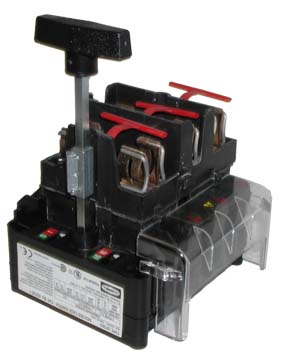

Fused And Non-Fused Disconnect Switch - Type 5140

Features

• UL listed, CSA certified, ISO 9002

• 600V AC & 250V DC

• Accepts auxiliary contact blocks

• 100kA withstand with class J & CC fuses

• Offers Type 2 protection when proper fuses are selected.

• Meets service entrance requirements

• Built-in fuse pullers, 30A, 60A.

• Double break contacts per pole provide fuse connector isolation when switch is open.

• International Markings.

• Meets applicable standards of IEC, VDE & Bs when supplied with proper fuse connectors.

• Door handle complies with OSHA lockout and tagout requirements.

• Door handle can be locked in the "off" position.

• Door handle interlocks with enclosure door to prevent unauthorized entry.

• Easy-to-operate handles.

• Line side terminal shield is standard , supplied with device.

• Two shaft lengths available, standard and extended.

• Positive switch status indicator.

• Optional load side terminal shield.

• Optional fuse cover

• Power terminals: 30 amp -- #14 to #8, 60 amp -- #14 to #4

• Auxiliary contact terminals: #14 to #12.

• Mechanical endurance 10,000 operations 30A, 60A & 100A.  8,000 operations on 200A.
