Battery-powered flow indicator, displays rate and total flow
» Pulse output, both numerically scaled by the user.

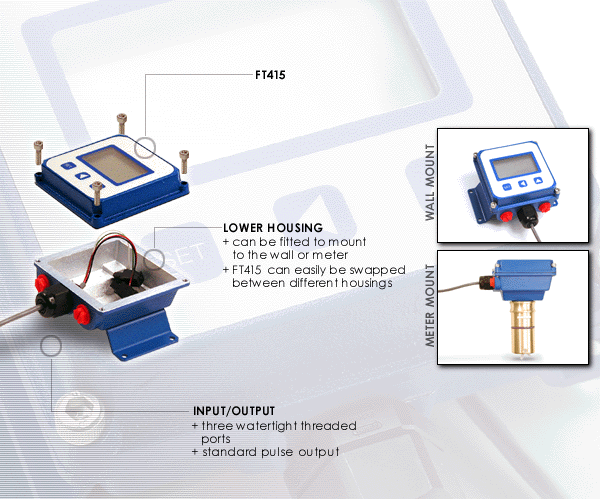

» Rugged cast aluminum housing, covered with a heat-fused coating
» For maximum moisture protection, the electronic components are potted solid
» Wall, flowmeter, and panel mounting
» Three year average battery life
FEATURES
Specifications
| Battery Type |
Lithium "C", 3.6V, replaceable |
| Normal Battery Life |
3 to 5 years |

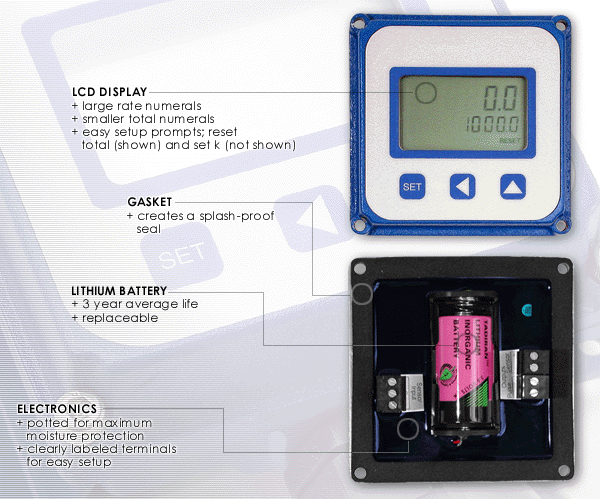

Display
| Rate |
6-digit autorange, 1/2" character height |
| Total |
8-digit, 5/16" character height |
| Pulse Output |
0.1 second open collector pulse (scaled) |
| |
Sensor pulse (unscaled) |
| |
High alarm or low alarm |
| Input |
Micropower GMR sensor (square wave) |
| Input Range |
1.0 to 2,500 pulses/second |
| K factor Range |
0.001 to 99999.999 |
| Pulse Output Range |
0.1 to 9999999.9 units/pulse |
| Flow Alarm Output Range |
0.01 to 999999.99 units/pulse |
| Temperature |
32° to 158°F (0° to 70°C) |
Seametrics FT-415 Instruction Manual .PDF
Updated on
April 3rd 2019
|
