Seametrics
WTC
Seametrics WTC Series Instruction Manual .PDF

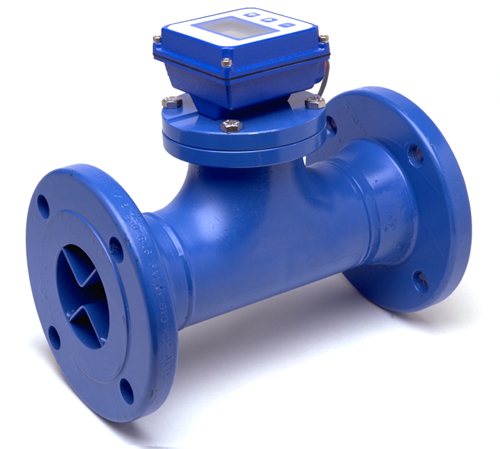

Carbon-steel body turbine flow meter
» In-line, individually-calibrated turbine meter maximizes accuracy
» Turbine rotor is the only moving part, optimizing low-flow performance
» Solid-state pickup
» Electronic register can be meter-mounted or remote
» Available with blind pulse or 4-20 mA output
» Heavy-duty, fabricated steel body with shopcoat
» Flanges standard 3" and above (2" has female NPT threads)
Features
Specifications

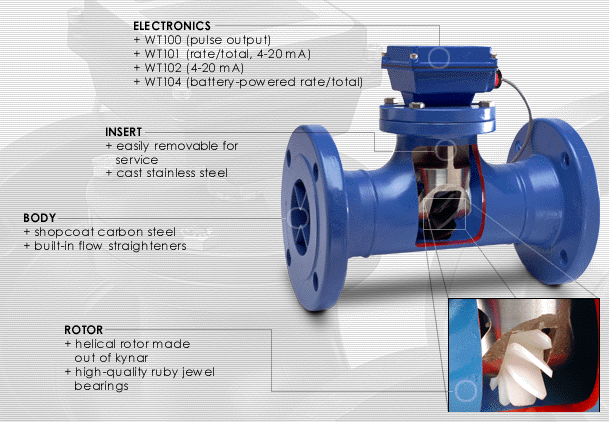

Materials
| Meter Body |
Painted Carbon Steel |
| Turbine Insert |
CF8M Cast Stainless |
| Turbine Rotor |
Kynar (PVDF) |
| Shafts |
Ceramic |
| Bearings |
Saphire journal, ruby endstone |
| Maximum Pressure |
200 PSI (14 bar) |
| Maximum Temperature |
200° F (93° C) |
Flow Range (GPM)
|
2" |
3" |
4" |
6" |
8" |
| Min |
2 |
3 |
6 |
12 |
30 |
| Max |
150 |
400 |
600 |
1200 |
3000 |
|
