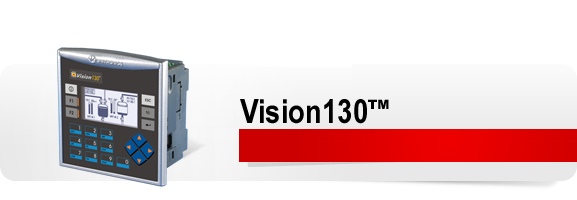

Unitronics Vision130 Series Overview

Vision130™ Connects! PLC, HMI & onboard I/Os plus ETHERNET, SMS/GPRS, CANopen, MODBUS...Vision130 Full Series Comparisson Table

The Vision130™ is a palm-sized PLC with a built-in Operator Panel. The panel offers a graphic display screen and keypad. This small, powerful device supports up to 166 I/Os (onboard plus expansion modules). A rich range of embedded features include multiple auto-tuned PID loops, internal 120K structured database, loadcell support, and communication options such as Ethernet, GSM/SMS, MODBUS, CANbus, function blocks that enable Vision to communicate with devices using proprietary COM protocols, plus remote access and data export software utilities.

The Graphic HMI display screen can show images, text, and graphs according to real-time parameters. It can also display graphs based on historical values, to reflect trends of recorded data. Vision130™ supports up to 1024 user-designed screens, and up to 500 images per application.

The Vision130™ is unique: it enables engineers and systems designers to benefit from a powerful PLC and a graphic HMI – within a bare minimum of budget, cabinet space, and wiring.

Our PLC/HMI integrated devices:

* save our customers’ programming time, wiring, and cabinet space.
* cut budget by reducing requirements for additional hardware
* prevent you from wasting time setting up Panel-PLC communication

Specifications

PLC

* Onboard inputs: Digital (including shaft-encoders), analog and temperature measurement
* Onboard outputs: Analog, Relay or Transistor, including PWM
* I/O Expansion Modules: enable up to 128 digital I/Os plus additional analog, temperature and weight inputs (number/type vary according to model)
* Application memory: 512K
* Scan time: 20µsec per 1K of typical application
* Multiple built-in PID loops, including auto-tune
* Data Tables: 120K (RAM) & 192K (Flash) for dynamic data logging and production recipes
* Mounting: Panel or DIN-rail

HMI

* 2.4" Graphic LCD display
* Display images, text and graphs according to real-time conditions and historical values
* 1024 displays, 500 images per application
* Application memory: Images- 256K; Fonts- 128K
* Data entry/modification via keypad
* 20 programmable keys, including 10 user-labeled keys
* Info mode: view/modify I/O status, integer values, and system data via the panel

Communications

* 1 built-in RS232/RS485 port
* 1 optional port for serial communication or Ethernet TCP/IP
* 1 optional port for CANbus communication (CANopen, UniCAN, CAN Layer 2)
* GSM/SMS support
* Remote access via network GPRS, GSM, CDMA or landline modems
* MODBUS (master/slave)
* OPC/DDE server
* Additional communication protocols


V130V130-33-R2
* 10 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog/Digital Inputs
* 6 Relay Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS
* GSM support - enables SMS messages
* 24 VDC power supply

V130V130-33-R6
* 6 Digital Inputs including 3 shaft-encoder Inputs
* 2 Digital/Analog (current/voltage) Inputs
* 4 Analog (current) Inputs
* 6 Relay Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS
* GSM support - enables SMS messages
* 24 VDC power supply
V130-33-R6 Specifications

V130V130-33-R34
* 20 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog/Digital Inputs
* 12 Relay Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS
* GSM support - enables SMS messages
* 24 VDC power supply

V130V130-33-RA22
* 8 Digital Inputs including 1 shaft-encoder Input
* 2 Analog/Digital Inputs
* 2 Thermocouple / PT100 / Digital Inputs
* 8 Relay Outputs
* 2 Analog Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS master/slave support
* GSM support - enables SMS messages
* 24 VDC power supply

V130V130-33-T2
* 10 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog/Digital Inputs
* 12 Transistor Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS
* GSM support - enables SMS messages
* 24 VDC power supply

V130V130-33-T38
* 20 Digital Inputs including 2 shaft-encoder Inputs
* 2 Analog/Digital Inputs
* 16 Transistor Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS
* GSM support - enables SMS messages
* 24 VDC power supply

V130V130-33-TA24
* 8 Digital Inputs including 1 shaft-encoder Input
* 2 Analog/Digital Inputs
* 2 Thermocouple / PT100 / Digital Inputs
* 10 Transistor Outputs
* 2 Analog Outputs
* Graphic White LED Display
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* MODBUS master/slave support
* GSM support - enables SMS messages
* 24 VDC power supply
